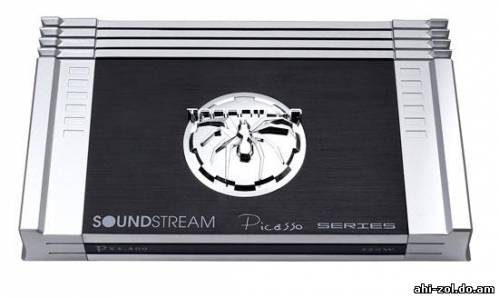

Picasso Series 4-Channel Class AB Car Amplifier RMS Power Rating: 4 ohms: 55 RMS x 4 chan. 2 ohms: 80 RMS x 4 chan. Bridged, 4 ohms: 160 watts x 2 chan. Fully regulated Pulse Width Modulated (PWM) MOSFET power supply LED power (green) and protection (red) indicators Selectable bass boost (0, 6, 12 dB at 45 Hz) Soft start turn-on 4/3/2 Channel operation Speaker-level inputs with signal sensing for automatic turn-on Tri-Guard amplifier protection circuitry (thermal, overload, and speaker short protection) Heavy duty aluminum alloy heatsink for excellent heat dissipation Platinum-plated RCA level inputs Platinum-plated screw terminals Input sensitivity: Low level: .2V High level: 6V Variable high-pass filter Channels 1&2: (50-4,000 Hz) Channels 3&4: (15-500 Hz) Variable low-pass filter (50-4,000 Hz) Damping factor: >234 Frequency response: 10-20,000 Hz Dimensions: 13-1/2"L x 9-5/8"W x 2-1/4"H 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier. Authorized Internet Dealer 1-year Manufacturer's warranty
